Wacom STU430 LCD Signature Tablet

Wacom STU430 LCD Signature Tablet

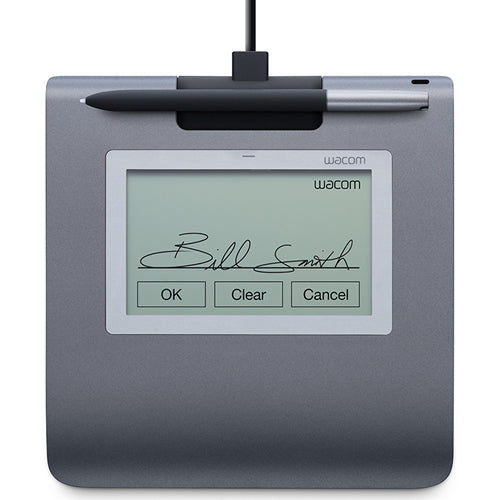

The STU-430 features a 4.5” monochrome LCD display that is large enough to easily accommodate soft buttons in addition to the signature area. The transreflective screen makes it easily viewable in nearly any typical lighting condition in office environments. It offers a very comfortable signing experience with an improved, thin design and a low-profile, flat surface.

The 1024 levels of pressure sensitivity allow a natural signature capturing. For secure and safe transactions an AES 256 bit encryption and RSA 2048 bit key exchange is included in the pad. Additionally, each unit is assigned a unique hardware ID in order to determine the exact unit that was used for a particular signature.

What's Included?

• STU-430 LCD signature pad
• Cordless and battery-free Wacom pen
• USB cable and cable lock
• Pen tether
• Quick Start Guide

Wacom STU430 Specs:

General Specifications:

• Product Dimensions: 6.4" w x 6.9" h x 0.4" d (161.4mm x 174.4mm x 10.8mm)
• Communication Interface: USB
• Power Supply: Via USB
• Security Lock Slot: Yes
• Warranty: 3 Years

Display:

• Screen Type: Monochrome Reflective FSTN LCD
• Screen Size">: 4.5" diagonal
• Screen Dimensions: 3.8" x 2.4" (96.0mm x 60.0mm)
• Native Resolution: 320 x 200

Pen & Sensor:

• Reading Method: Electro-Magnetic Resonance (EMR) Technology
• Pen Pressure Levels: 1024 levels
• Sensor Resolution: 2540 lpi (not interpolated)
• Coordinate Accuracy: ± 0.5 mm (center)
• Battery-free Pen: Yes
• Cordless Pen: Yes
• Report Rate: 200 points/sec
• Development Environments: C++, .Net, and Java SDK/API available for developers
